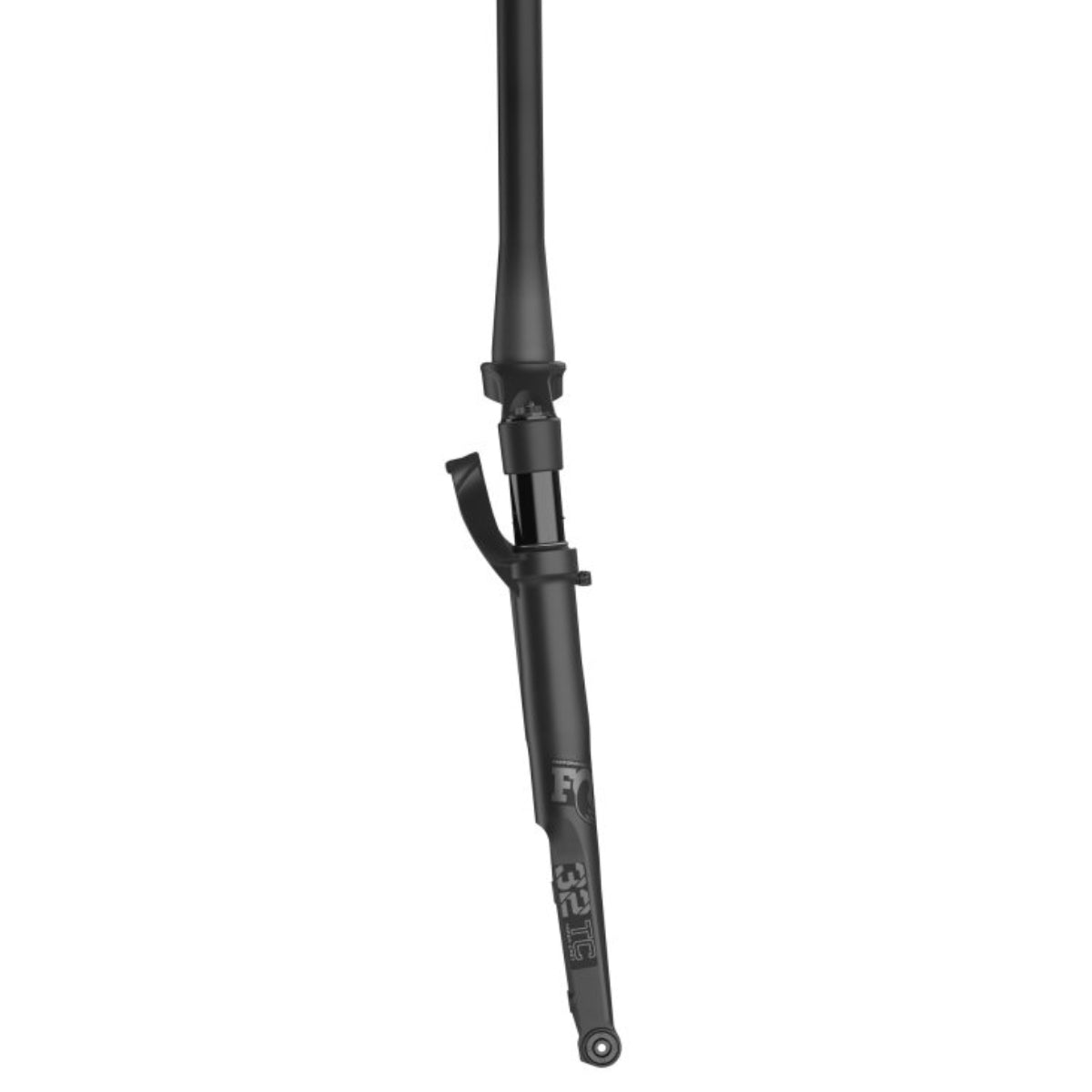

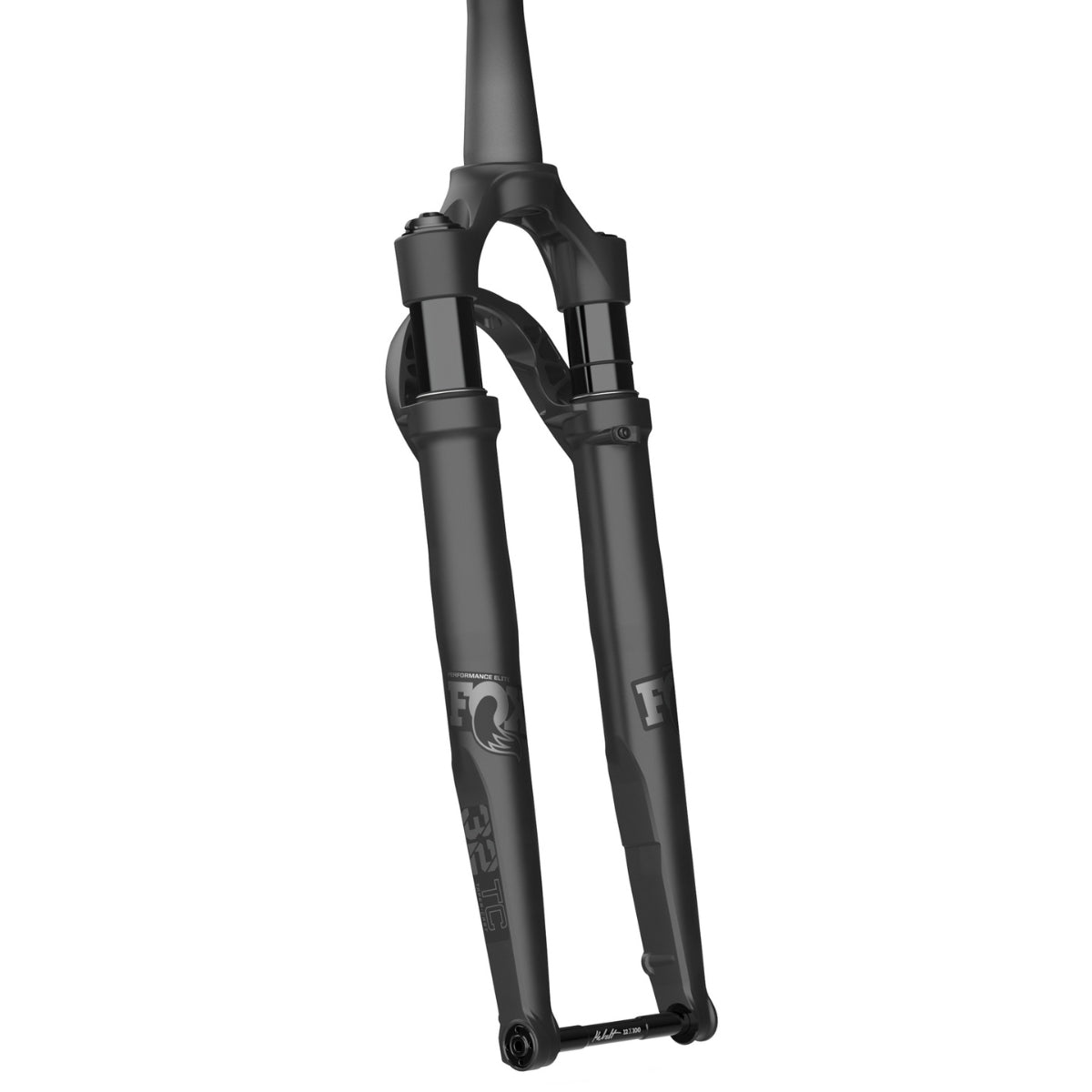

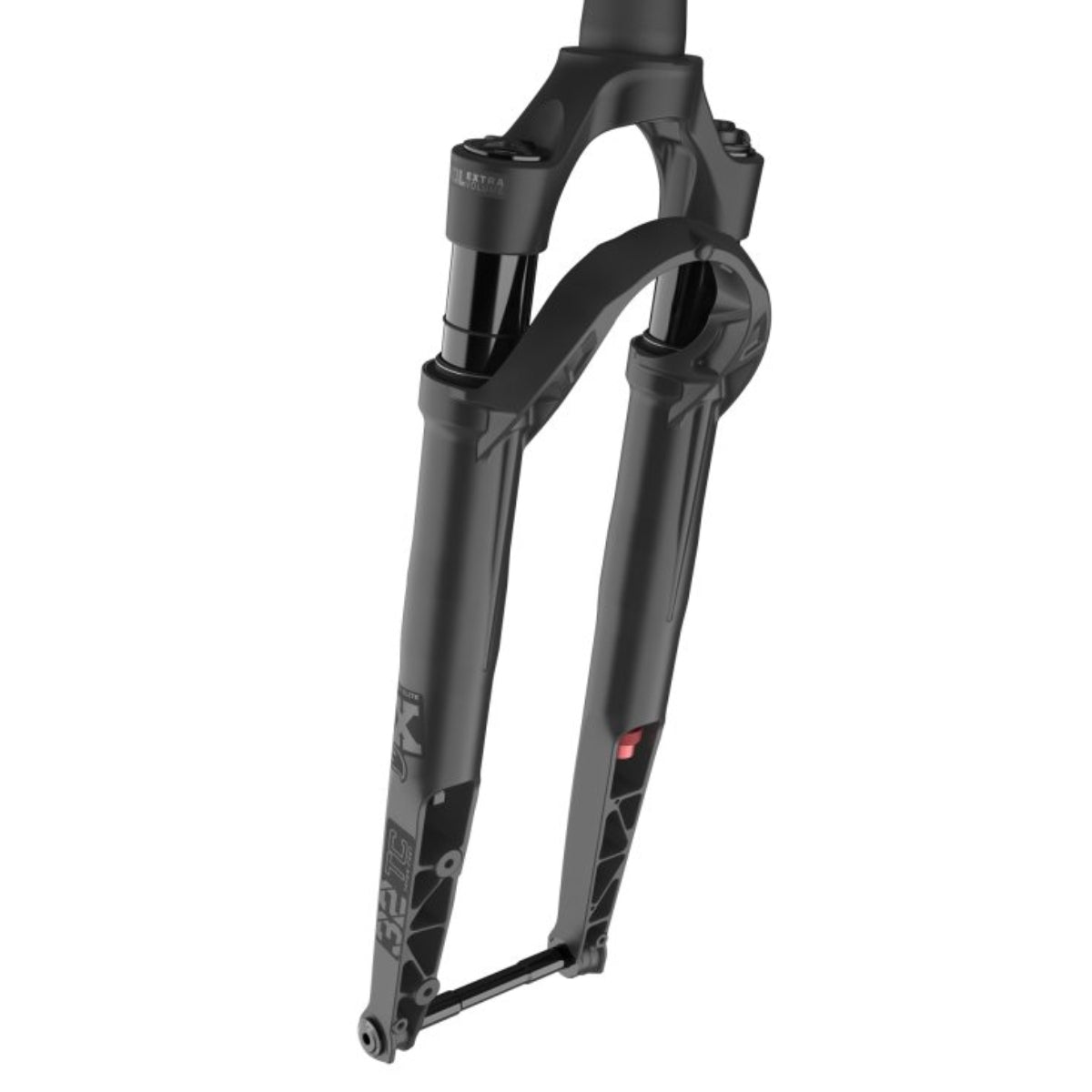

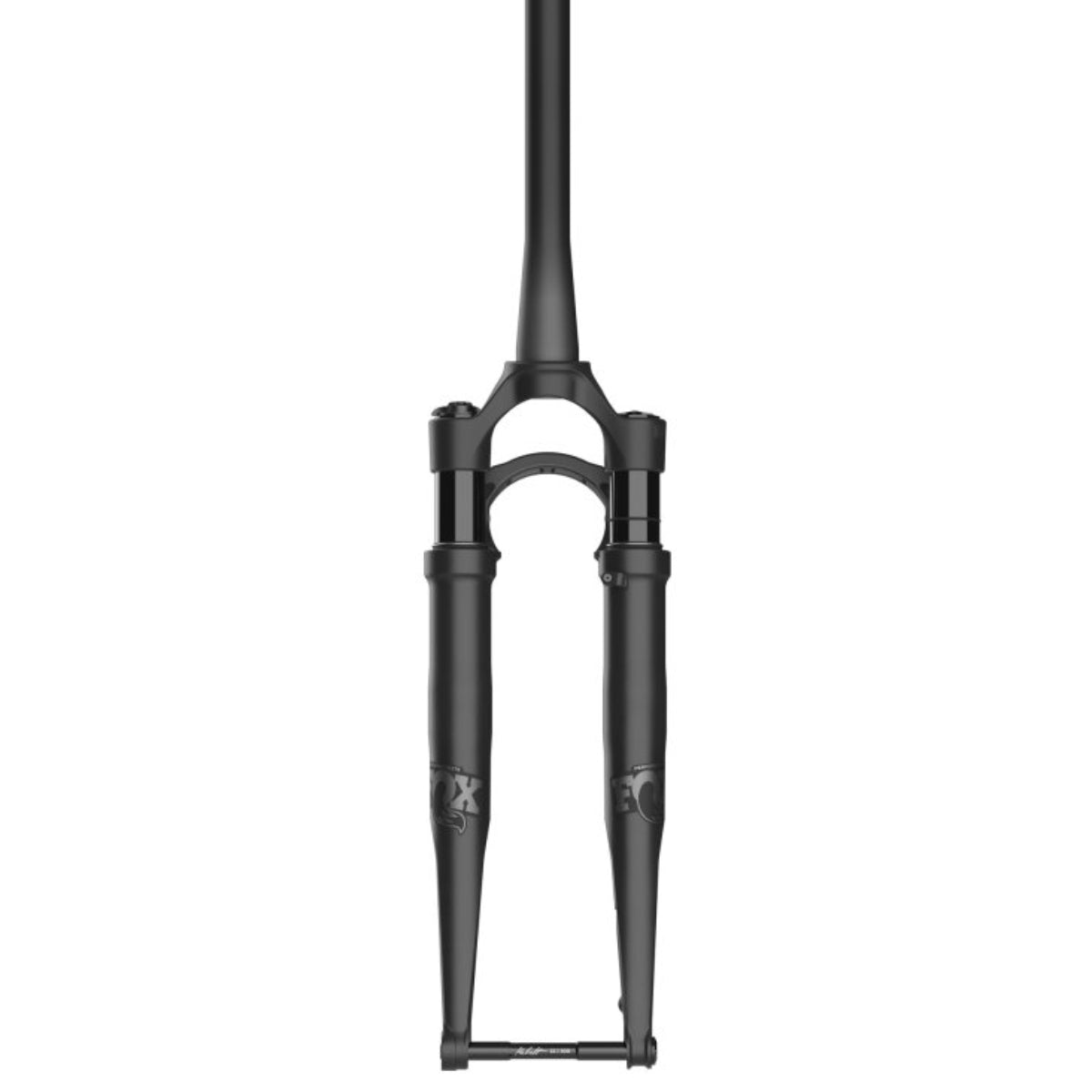

The 2022 FOX 32 TC Performance Elite 40mm Fork is a groundbreaking suspension fork specifically designed for modern gravel biking. Developed from the ground up with feedback from partners and athletes, this fork replaces traditional elastomer-sprung stems and undamped leaf springs with a full suspension system tailored for the demands of gravel riding.
Key Features:
- Suspension Travel: Offers 40mm of travel, providing ample absorption for rough gravel roads and trails.

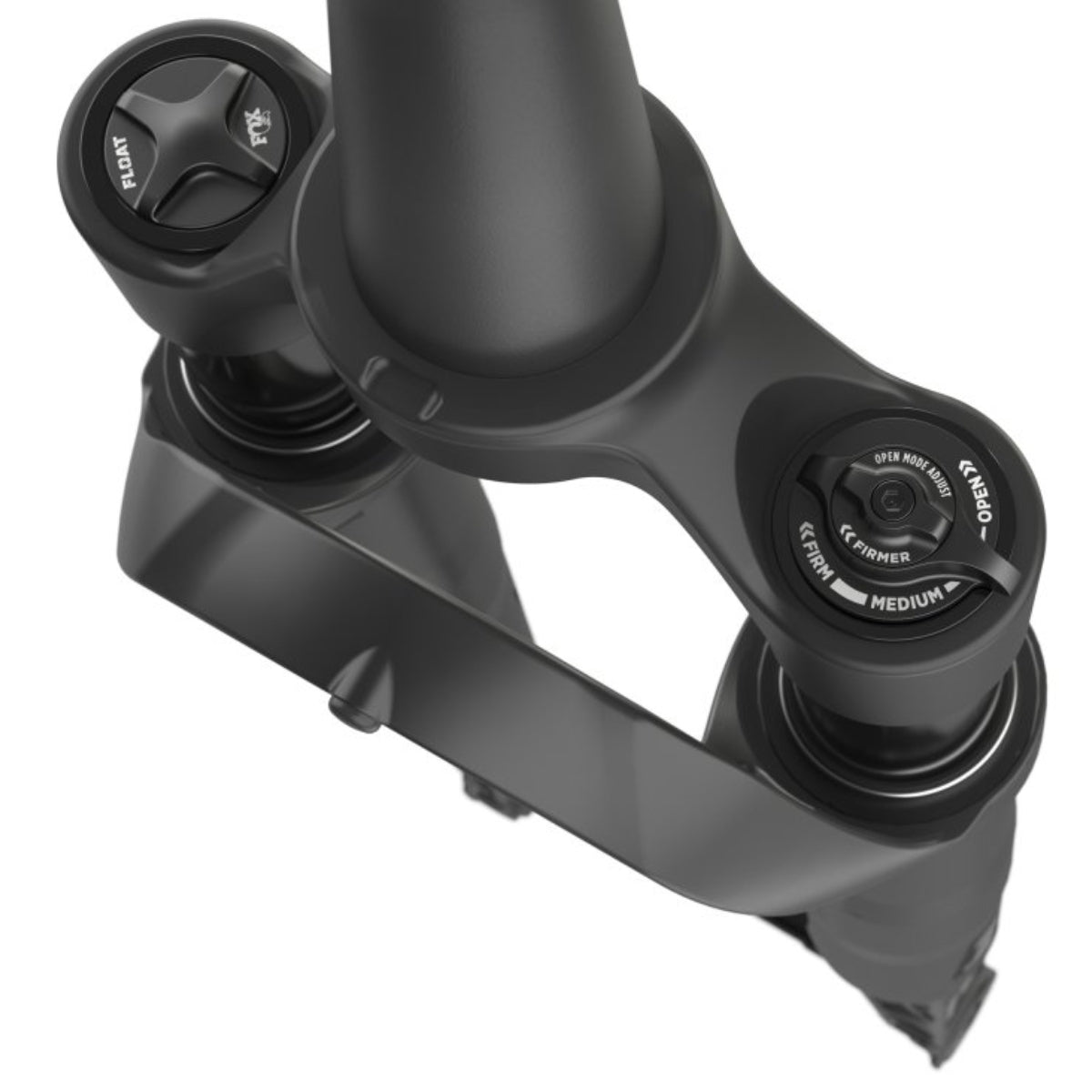

- Damper: Equipped with the FOX FIT4 damper, which features three positions (Open, Medium, Firm) and adjustable low-speed compression, allowing for personalized tuning to suit various riding conditions25.
- Chassis and Tire Compatibility: Designed for 700c wheels, with clearance for tires up to 50mm. When using mudguards, the maximum tire size is 45mm245.
- Integrated Fender Mounts: Includes integrated brackets for mudguards, enhancing versatility and practicality for different weather conditions.
- Frame Compatibility: Features a slim triple clamp design to improve compatibility with various frame geometries.
- Air Spring: Utilizes a travel-specific FLOAT EVOL air spring, optimized for the shorter travel lengths of the 32 TC fork25.
- Air and Oil Channels: Incorporates air and oil channels in the fork tube unit to prevent excess air pressure build-up and ensure smooth fork operation24.
- Adjusters: Compact adjusters with an extra low profile provide more space in the downtube area, enhancing frame compatibility.
- Steerer Tube: 1.5 tapered steerer tube for robust and secure steering245.

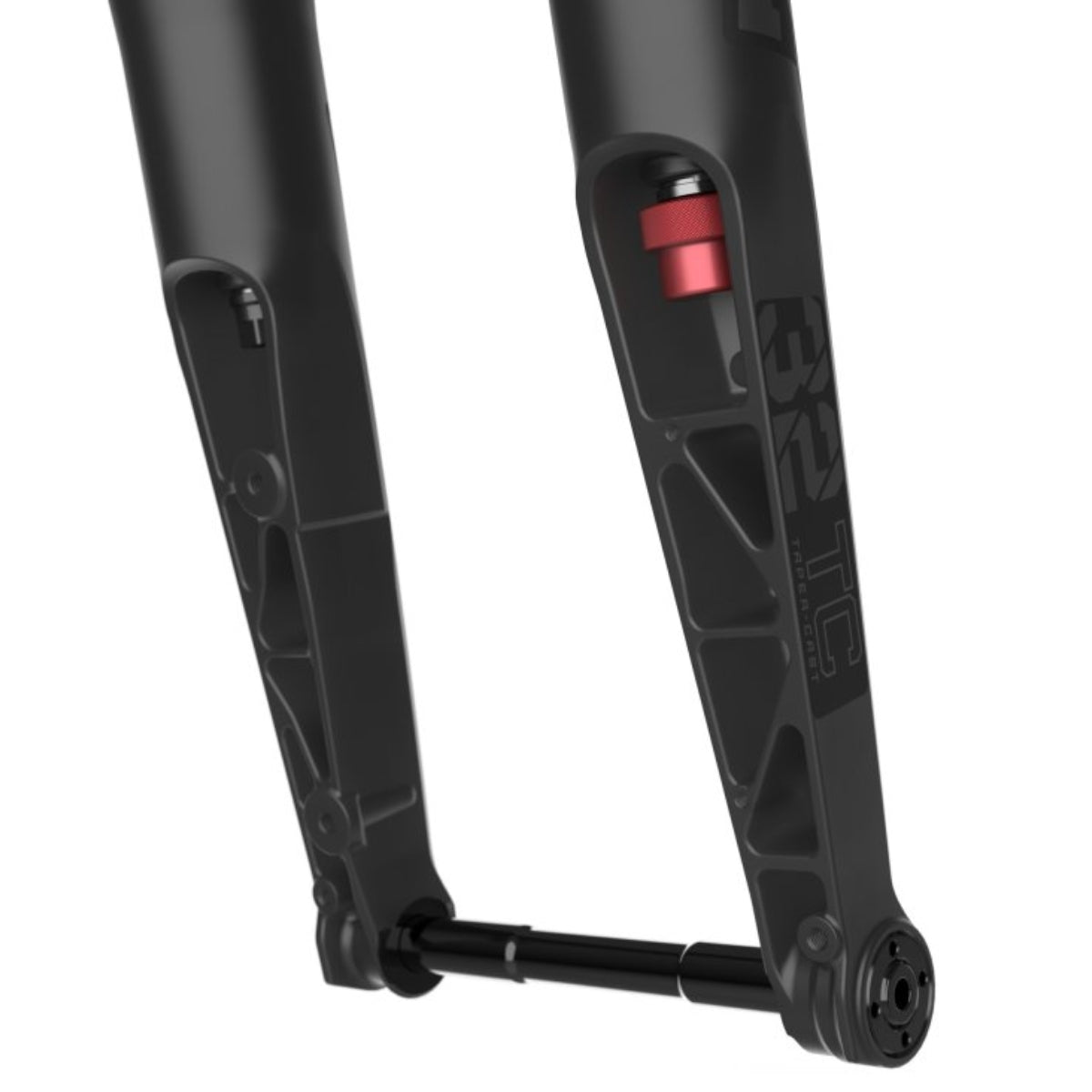

- Axle: Featherlight 12mm x 100mm Kabolt thru axle for added strength and minimal weight.
- Rake: 45mm rake for balanced handling and stability.
- Brake Mount: Flat Mount design compatible with 160mm to 180mm brake discs, offering flexibility in braking setup245.
- Mounting Height: Axle-to-crown measurement of 435.5mm for the 40mm travel version, which may affect the fit and handling of some existing gravel bikes245.
Who is it for?
The 2022 FOX 32 TC Performance Elite 40mm Fork is ideal for gravel cyclists who seek to enhance their riding experience with improved control, comfort, and speed.
